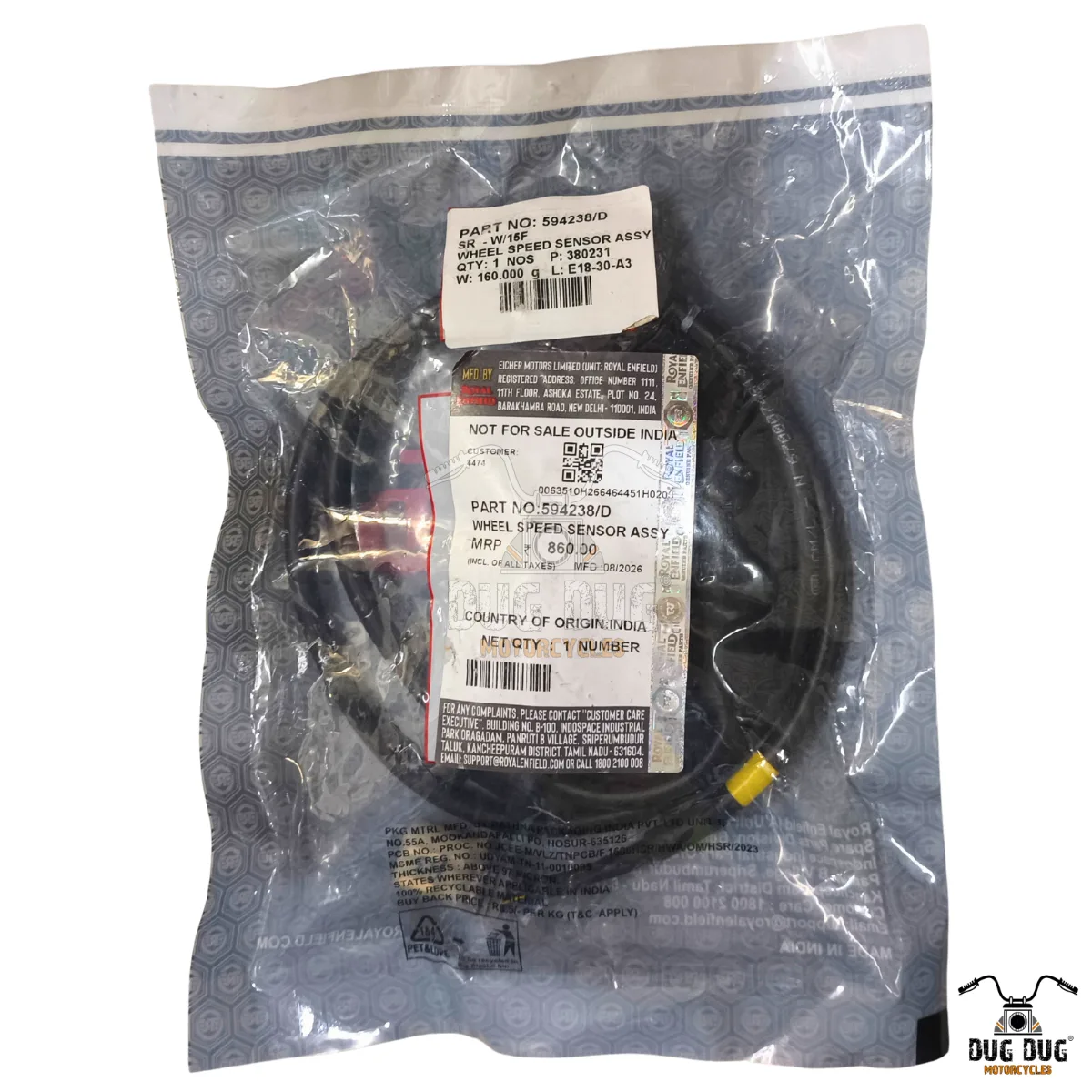

Royal Enfield 594238/D – Genuine Wheel Speed Sensor Assembly for Interceptor 650 & Continental GT 650

Royal Enfield 594238D Wheel Speed Sensor Interceptor GT 650 is a model-specific wheel speed sensor assembly designed for compatible Royal Enfield Interceptor 650 and Continental GT 650 motorcycles. Identified by Part No. 594238/D, this replacement sensor is designed to detect wheel rotation and provide wheel-speed information to the motorcycle’s electronic system.

The wheel speed sensor is an important component of a motorcycle’s electronic and ABS-related sensing system. It works by detecting wheel movement and sending the required wheel-speed information to the motorcycle’s control system. Accurate wheel-speed information is important for electronic systems that monitor wheel rotation and braking behaviour.

When a sensor becomes damaged, contaminated, disconnected or develops an electrical fault, replacing it with the correct model-specific component can help restore the intended sensing arrangement. The 594238/D Wheel Speed Sensor Assembly provides a specific replacement reference for compatible Interceptor 650 and Continental GT 650 applications.

Before purchasing, riders and technicians should always verify the motorcycle model, existing part number and required fitment.

Royal Enfield 594238D Wheel Speed Sensor Interceptor GT 650

The Royal Enfield 594238D Wheel Speed Sensor Interceptor GT 650 is designed for riders and workshops looking for a replacement wheel speed sensor with a specific part-number reference.

Unlike generic sensors that may be marketed for multiple motorcycles, a model-specific replacement should be selected according to the motorcycle’s application, connector, mounting arrangement and part number.

The 594238/D sensor is intended for the specified Interceptor 650 and Continental GT 650 applications. Its primary function is to detect wheel rotation and provide wheel-speed information to the motorcycle’s electronic system.

This makes correct installation particularly important. The sensor should be mounted in the correct position, its connector should be properly secured, and its wiring should be routed safely away from components that could damage the cable.

Royal Enfield’s published guidance also highlights the importance of inspecting wheel-speed sensors and ABS-related components, including checking sensor ends for contamination and inspecting ABS tone rings for damage.

Genuine Wheel Speed Sensor Assembly for Interceptor 650 & GT 650

The wheel speed sensor is a compact component, but it performs an important sensing function. During motorcycle operation, the sensor detects wheel rotation and supplies wheel-speed information to the electronic system.

For compatible motorcycles, this information can be used as part of the ABS system’s wheel-speed monitoring. Royal Enfield describes ABS as a system that uses braking-system sensors to provide information to the ABS modulator during braking events.

The 594238/D Wheel Speed Sensor Assembly is specified for:

• Royal Enfield Interceptor 650
• Royal Enfield Continental GT 650
• Part Number: 594238/D
• Wheel-speed sensing application
• Replacement and maintenance use

The correct sensor should always be selected based on the motorcycle’s application and part number rather than appearance alone.

What Does a Wheel Speed Sensor Do?

A wheel speed sensor detects the rotational movement of the wheel and provides the motorcycle’s electronic system with wheel-speed information.

The sensor operates as part of a larger sensing arrangement. Its performance depends not only on the sensor itself but also on its mounting position, wiring, electrical connector and the associated sensing or tone-ring components.

For ABS-equipped motorcycles, accurate wheel-speed information is particularly important. Royal Enfield’s guidance states that ABS uses sensor information to help the system control hydraulic pressure during sudden or hard braking.

This is why a damaged or incorrectly installed wheel speed sensor should not be ignored.

A replacement sensor should be installed correctly and the complete sensing area should be inspected before the motorcycle is returned to normal road use.

Compatibility of 594238/D Wheel Speed Sensor

This product is intended for the following applications:

Royal Enfield Interceptor 650

The 594238/D wheel speed sensor is specified for compatible Royal Enfield Interceptor 650 motorcycles. The Interceptor 650 is listed by Royal Enfield among its supported motorcycle models and owner-manual resources.

Royal Enfield Continental GT 650

The sensor is also specified for the Continental GT 650. Royal Enfield provides dedicated owner-manual resources for the Continental GT 650, including information related to the motorcycle’s ABS and wheel-speed sensing system.

Always compare Part No. 594238/D with the component being replaced before placing an order.

Why Correct Wheel Speed Sensor Fitment Matters

A wheel speed sensor needs to be positioned correctly to detect wheel rotation reliably. The sensor, wiring and associated sensing components work together, so an installation issue in any one of these areas can affect the overall system.

Incorrect installation can potentially result from:

• Incorrect sensor positioning
• Damaged mounting hardware
• Loose electrical connector
• Pinched or stretched wiring
• Cable routed too close to moving components
• Excessive contamination around the sensor
• Damaged sensing or ABS tone ring
• Physical impact during wheel removal or installation

Royal Enfield specifically recommends inspecting ABS tone rings for damaged or bent teeth and checking the ends of wheel sensors for debris or contamination.

For this reason, replacing the sensor should include a basic inspection of the surrounding components.

Signs That a Wheel Speed Sensor May Need Replacement

A wheel speed sensor can develop problems because of physical damage, wiring issues, contamination, connector problems or other related component faults.

Possible signs may include:

• ABS warning indicator remaining illuminated
• Wheel-speed-related diagnostic fault
• Electronic warning on the instrument cluster
• Visible damage to the sensor
• Damaged sensor wiring
• Loose or damaged connector
• Sensor contamination
• Damage to the associated sensing ring
• Problems occurring after wheel removal or installation

It is important to understand that an ABS warning does not automatically prove that the wheel speed sensor itself has failed.

The problem may also be associated with wiring, connectors, tone rings or another part of the braking or electronic system. A proper inspection or diagnostic check is therefore recommended before replacing components unnecessarily.

Royal Enfield advises that when the ABS indicator remains continuously illuminated after the motorcycle has reached the relevant speed, the braking system should be inspected and corrected before normal riding.

Installation and Replacement Information

The Royal Enfield 594238D Wheel Speed Sensor Interceptor GT 650 should be installed carefully because the sensor forms part of the motorcycle’s wheel-speed sensing arrangement.

Before Replacing the Sensor

Before removing the existing sensor, inspect:

• Sensor body
• Sensor mounting point
• Sensor wiring
• Electrical connector
• Wheel area
• Sensing/tone ring
• Nearby components
• Signs of contamination or physical damage

Check whether the sensor cable has been stretched, pinched or damaged.

Also inspect the sensing ring for damaged, bent or missing teeth. A damaged tone ring can affect wheel-speed sensing even when a new sensor is installed.

General Replacement Steps

A qualified technician should follow the motorcycle-specific service procedure. In general, the replacement process includes:

1. Park and secure the motorcycle on a stable surface.
2. Switch off the ignition.
3. Access the wheel speed sensor and mounting area.
4. Disconnect the electrical connector carefully.
5. Remove the existing sensor using the appropriate tools.
6. Inspect the sensor mounting area.
7. Inspect the associated sensing/tone ring.
8. Remove dirt or contamination where appropriate.
9. Position the 594238/D wheel speed sensor correctly.
10. Secure the sensor using the correct hardware.
11. Route the wiring safely.
12. Reconnect the electrical connector.
13. Reinstall any components removed during the process.
14. Check that the sensor does not interfere with moving components.
15. Perform the required diagnostic and operational checks before riding.

This product should not be treated as a simple cosmetic replacement. Because wheel-speed sensing is associated with electronic and ABS-related functions, correct installation is essential.

Important Checks After Installation

After fitting the replacement sensor, check the following:

• Sensor is securely mounted.
• Electrical connector is properly connected.
• Wiring is not pinched or stretched.
• Wiring is safely routed.
• Sensor does not contact rotating components.
• Sensing/tone ring is not damaged.
• Sensor area is free from excessive contamination.
• ABS warning behaviour is normal.
• No unresolved electronic or ABS fault remains.

Royal Enfield recommends checking the ABS indicator during motorcycle operation and inspecting the wheel sensors and tone rings as part of ABS-related care.

If an ABS warning remains illuminated, the motorcycle should be inspected by a qualified technician before normal riding.

Product Specifications

Benefits of Royal Enfield 594238/D Wheel Speed Sensor

Choosing the correct wheel speed sensor can make replacement and maintenance easier for both riders and technicians.

Model-Specific Application

The sensor is specified for compatible Interceptor 650 and Continental GT 650 motorcycles, helping riders identify the required application before purchase.

Specific Part Number

The 594238/D part number provides a clear reference for identifying the required sensor.

Wheel-Speed Detection

The component is designed to detect wheel rotation and provide wheel-speed information to the motorcycle’s electronic system.

Suitable for Replacement

The sensor can be used when the corresponding component requires replacement due to damage, diagnosed failure or other service requirements.

Maintenance-Friendly

A correctly identified replacement part can simplify motorcycle maintenance by giving technicians a clear product and application reference.

Why You Should Check the Part Number Before Ordering

Motorcycle sensors can look similar while having different electrical connections, cable lengths, mounting arrangements or applications.

For this reason, riders should not select a wheel speed sensor only by its appearance.

Before ordering, verify:

• Motorcycle model
• Motorcycle variant
• Existing sensor
• Part number
• Connector
• Mounting arrangement
• Required wheel position

For this product, the specified part number is 594238/D.

Checking the part number before purchase helps reduce the possibility of ordering an unsuitable component.
